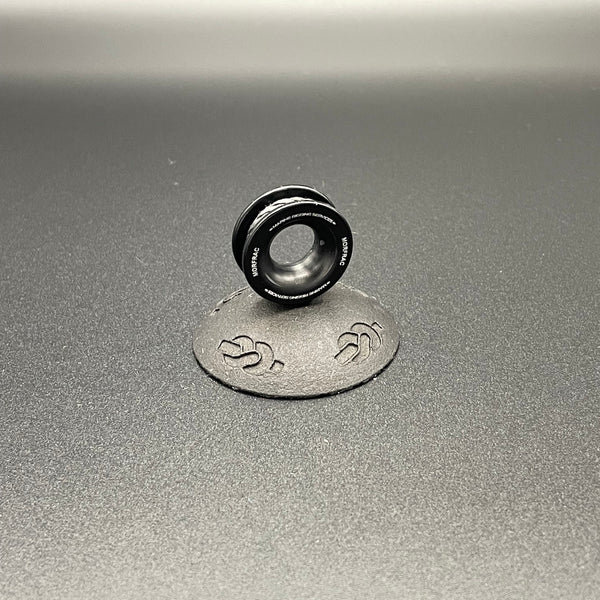

40mm Pad-eye with a Morfring.20
Diameter | 40mm |
Height | 29mm |
Weight | 11g |
Line diameter - max | 6mm |
SWL | 150kg |
Pre-made for you! 40mm pad with a Morfring.20. already attached - perfect for line management. Follow pre-pare and install for best results. Masking vinyl supplied
Install information
Take the time to plan out your install. Once a location is selected within the boat ensure the structure is solid and not showing any signs of damage or delamination. Peel and stick the template to a clean surface. Take the time to key the surface using 80grit sandpaper removing any paint off the surface finish. If using a pre-made pad-eye, key the surface again using 80grit. Clean both the pad-eye surface and boat surface well with acetone and let dry. To bond for permanent fixing use a two-part epoxy-based adhesive. If you may wish to remove or for lower load baring use a Sika mastic adhesive. We do not advise using a solvent based adhesive. Using make your own, apply glue to the rope recess in the base of the pad and then push the rope into place. Apply an ample amount of adhesive to the bond surface in the middle of the template and push into place. Apply pressure once and leave. You should have an even overspill around the rim of the pad-eye. If you do not, you may not have applied enough adhesive so remove and re-apply with more. Once in place clean up the surrounding area and remove the masking template. Ensure you follow the adhesives instructions with regards to time and temperature for the best install. In an area defying gravity use a strip of masking tape to hold in place. Don't let glue get in, or on, the blocks or loops as this will impair the products performance.
